Truepress Jet520NX Series Full-Colour Variable Printing System
Moving Beyond Transaction Printing Into All New Markets
The Truepress Jet520NX is fine-tuned for optimum performance and offers a wealth of new functions to open up a wider range of applications.
Unrivaled quality and speed to power transactional printing superiority
The Truepress Jet520NX features a head-of-the-class five-inch printhead module that delivers unprecedented quality (up to 600 x 900 dpi resolution) and a maximum speed of up to 150 meters per minute. The gap between printheads has been reduced to just one-eighth of earlier SCREEN systems to deliver even higher quality, more stable printing.
Truepress Jet520NX
Truepress Jet520
“Xross-over” printhead configuration for flexibility and expandability
The Truepress Jet520NX has a unique printhead design that efficiently handles both monochrome and full colour printing. CYM printheads can be “parked” when printing mono, to reduce ink consumption. Plus an extra printhead can be installed adjacent to the other printheads to handle MICR and other specific function inks.
Easy operation, maintenance, and layout fits your crew & space needs
The small footprint of the Truepress Jet520NX permits virtually unlimited space configurations to accommodate efficient positioning of unwind and rewind systems. Layouts can be arranged to suit installation space and orientation of the production line: I-shape, U-shape, L-shape or H-shape design. Maintenance can be performed without cutting paper, and print operation is performed effortlessly from its user-friendly touch panel.
Truepress Jet520NX next generation full-color inkjet printing for superior transactional printing
The Truepress Jet520NX’s class-leading 5-inch printhead module and “x-over” design affords transactional printers faster 150 m/min speed, higher quality resolution up to 600 x 1200 dpi and more flexibility and expandability than any high-speed, full-colour variable inkjet system in use.
Functional Printing
The Truepress Jet520NX features a 5th inkjet head, which supports variable printing using functional inks. This includes magnetic ink for MICR, UV visible ink and IR absorbing ink. It secures authenticity of physical printing and adds special attributes without the need for any extra processes.
Smart Print Manufacturing
SCREEN has partnered with Solimar to offer Smart Print Manufacturing through integration of SOLitrack with EQUIOS workflow. The SOLitrack system provides excellent visualization of each job’s progress and the status of equipment. It also features a wide range of partnerships that enable it to link with the printers of various manufacturers. SCREEN’s EQUIOS solution platform delivers proven, highly reliable RIP processing, automation of predefined workflows and flexible automation with an array of postpress equipment. The combination of both systems enables the construction of an ideal workflow environment for any customer.
Scalable Configuration
In addition to the standard Truepress Jet520NX, the lineup includes the Truepress Jet520NX EN, an entry level model offering outstanding cost performance. A Black Enhanced high-speed monochrome option is also available, enabling printing companies to build a production system that is ideally suited to their business environment.
Download the brochure for more information.
IPDS Controller
SCREEN now offers a fully-integrated native IPDS controller, co-developed with cross-media marketing specialist TagG Informatique. The reliable IPDS workflow and EQUIOS workflow that are based on Adobe PDF Print Engine can be used on the same platform, thus the user can flexibly switch between optimized flows according to their jobs.
Applications
Transactional
Screen high-speed inkjet presses are changing the look and feel of monthly statements, invoices, policies and other documents. Attention-grabbing colour and targeted messages combine with fast throughput to add value to every customer communication. With our native IPDS controller and JetInspection system, you can guarentee a 100%...
Commercial
Printing directly onto offset coated stocks opens up a broad market that was previously only suitable for offset. Now you can print jobs like flyers, brochures and catalogues which can be short-run, localized or personalized. Think about the possibilities Beyond Offset!
Publishing
Screen technology creates new opportunities to use continuous-feed inkjet for high-end publications and digital book printing that were previously impossible. Screen inkjet web presses leverage the speed advantages of digital technology while providing opportunities for variable data, full colour and different text stocks.
Literature
Download Brochure
Please provide a little information about yourself before downloading the Truepress Jet520NX Series brochure.
Specifications

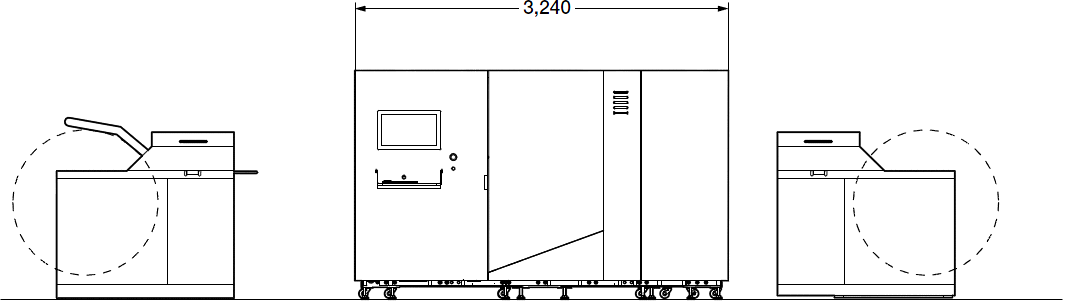

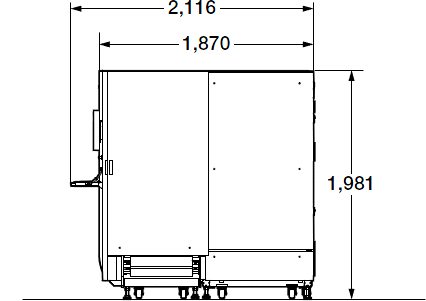

Dimensions
| Printing method | Inkjet, one pass drop on demand piezo |
|---|---|
| Controller (requires selection) | EQUIOS: PS, PDF, PDF/VT IPDS controller: AFP/IPDS*1 |
| RIP | EQUIOS |
| Ink | Truepress inks |
| Resolution | Truepress Jet520NX EN: 600 x 450 dpi, 600 x 600 dpi Truepress Jet520NX: 600 x 450 dpi, 600 x 600 dpi (600 x 900 dpi is planned optional settings) |
| Printing speed | Truepress Jet520NX EN: Max. 75 m/min*2 Truepress Jet520NX: Max. 150 m/min*2 |
| Black Enhanced high-speed monochrome option | 180 m/min*3 (600 x 600 dpi) |
| Printing width | 165 to 520 mm |
| Paper width | 165 to 520 mm |
| Paper thickness | 40 to 250 gsm*2 |
| Dimensions (W x D x H) | 3,240 x 1,860 x 1,981 mm (height includes padding of 10 mm) |
| Weight | Truepress Jet520NX EN: Approx. 2,710 kg Truepress Jet520NX: Approx. 2,830 kg (including extra printheads) |
| Power requirements | Truepress Jet520NX EN Controller: Three phase 200 to 240 V, 31.4 A / 380 to 415 V, 16.5 A Heater: Three phase 200 to 240 V, 65 A / 380 to 415 V, 35 A Controller PC: Single phase 100 to 240 V, 2 A EQUIOS: Single phase 200 to 240 V, 30 A Ink supply unit: Single phase 200 to 240 V, 5 ATruepress Jet520NX Controller: Three phase 200 to 240 V, 31.4 A / 380 to 415 V, 16.5 A Heater: Three phase 200 to 240 V, 95 A / 380 to 415 V, 50 A Controller PC: Single phase 100 to 240 V, 2 A EQUIOS: Single phase 200 to 240 V, 30 A Ink supply unit: Single phase 200 to 240 V, 5 A |
| Operating environment | Temperature: 18 to 24°C (no sudden temperature changes) Humidity: 40 to 60% (no condensation) |
*1 Soon to be available for the Truepress Jet520NX EN (under development).
*2 Some conditions apply.
*3 Under development
| Printing method | Inkjet, one pass drop on demand piezo |
|---|---|
| Controller (requires selection) | EQUIOS: PS, PDF, PDF/VT IPDS controller: AFP/IPDS*1 |
| RIP | EQUIOS |
| Ink | Truepress inks |
| Resolution | Truepress Jet520NX EN: 600 x 450 dpi, 600 x 600 dpi Truepress Jet520NX: 600 x 450 dpi, 600 x 600 dpi (600 x 900 dpi is planned optional settings) |
| Printing speed | Truepress Jet520NX EN: Max. 75 m/min*2 Truepress Jet520NX: Max. 150 m/min*2 |
| Black Enhanced high-speed monochrome option | 180 m/min*3 (600 x 600 dpi) |
| Printing width | 165 to 520 mm |
| Paper width | 165 to 520 mm |
| Paper thickness | 40 to 250 gsm*2 |
| Dimensions (W x D x H) | 3,240 x 1,860 x 1,981 mm (height includes padding of 10 mm) |
| Weight | Truepress Jet520NX EN: Approx. 2,710 kg Truepress Jet520NX: Approx. 2,830 kg (including extra printheads) |
| Power requirements | Truepress Jet520NX EN Controller: Three phase 200 to 240 V, 31.4 A / 380 to 415 V, 16.5 A Heater: Three phase 200 to 240 V, 65 A / 380 to 415 V, 35 A Controller PC: Single phase 100 to 240 V, 2 A EQUIOS: Single phase 200 to 240 V, 30 A Ink supply unit: Single phase 200 to 240 V, 5 ATruepress Jet520NX Controller: Three phase 200 to 240 V, 31.4 A / 380 to 415 V, 16.5 A Heater: Three phase 200 to 240 V, 95 A / 380 to 415 V, 50 A Controller PC: Single phase 100 to 240 V, 2 A EQUIOS: Single phase 200 to 240 V, 30 A Ink supply unit: Single phase 200 to 240 V, 5 A |
| Operating environment | Temperature: 18 to 24°C (no sudden temperature changes) Humidity: 40 to 60% (no condensation) |
*1 Soon to be available for the Truepress Jet520NX EN (under development).
*2 Some conditions apply.
*3 Under development
