Truepress Jet520HD Series High-Definition Inkjet Web Press
Breathtaking, Gorgeously Detailed Printing That Brings Color to Life
A new generation of high-speed inkjet press from the market leader rivals offset and puts you in control of your business.Accurately Reproduced Lines and Microtext

Ultrafast RIPing of High-Volume Data

Truepress Jet520HD Drying Systems
- Truepress Jet520HD Air heating and heat drum
- Truepress Jet520HD+ Air heating and heat drum plus an additional NIR (near infrared) dryer, which delivers higher heat energy that quickly and uniformly dries the interior of the ink
- Truepress Jet520HD AD The advanced dryer unit combines a constant temperature dryer with small diameter heated rollers to deliver superior drying performance
Monochrome printing for coated papers

SCREEN is Proud to Present InfoTrends' White Paper on the Truepress Jet520HD with SC Inks
Superior Defect Detection Reduces Costs, Time Requirements


Applications
Commercial
Printing directly onto offset coated stocks opens up a broad market that was previously only suitable for offset. Now you can print jobs like flyers, brochures and catalogues which can be short-run, localized or personalized. Think about the possibilities Beyond Offset!
Publishing
Screen technology creates new opportunities to use continuous-feed inkjet for high-end publications and digital book printing that were previously impossible. Screen inkjet web presses leverage the speed advantages of digital technology while providing opportunities for variable data, full colour and different text stocks.
Paperboard (Cartons)
Printing on paperboard for primary and secondary packaging offers versatility across a number of industries. Print performance is a key object for paperboard packaging, and Screen inkjet printing systems ensure a remarkable level of performance.
Direct Mail
Time to market is everything in the print-and-mail world. For time-sensitive, mission-critical communications that get results for your clients, look no further than SCREEN high-end, quality print, high-speed inkjet.
Magazines
Short-run business magazines and commercial catalogue-like magazines are great communication tools and because of the 520HD, those tools now also become available to the majority of small- and midsize companies. The savings are not only in the printing; a reduced number of touch points requires less labour and shortens lead times through digital...
Thermal Paper
Thermal papers were never possible to print with high-speed inkjet before, however the NIR drying of the TP-J520HD+ allows the drying temperatures to remain well below the activation point of most papers.
Literature

Download Brochure
Please provide a little information about yourself before downloading the Truepress Jet520HD Series brochure.
Specifications

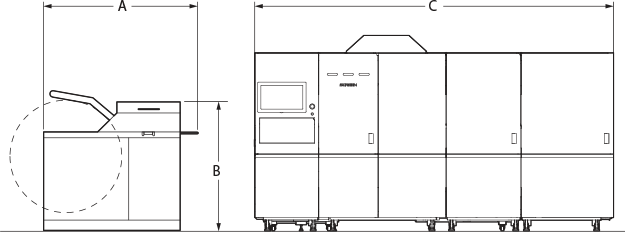

Dimensions
A | B | C | D | E | F | |
---|---|---|---|---|---|---|
Jet520HD | 4,070mm | 2,025mm | 2,005mm | 93mm | 250mm | 195mm |
Jet520HD+ | 4,070mm | 2,025mm | 2,005mm | 93mm | 250mm | 398mm |
Jet520HD AD | 4,289.5mm | 2,025mm | 2,005mm | 93mm | 250mm | 351mm |
Printing system | Inkjet, Piezo single-pass DOD |
---|---|
Controller | EQUIOS: PS, PDF, PDF/VT (standard) IPDS Controller: AFP/IPDS (optional) |
Inks | Truepress ink SC for Truepress Jet520HD CMYK (standard) |
Resolution | Max. 1,200 x 1,200 dpi |
Printing speed | Max. 150 m/min. (with option)* |
Printing width | 150 to 508 mm |
Media width | 165 to 520 mm |
Media thickness | 40 to 250 gsm (up to 157 gsm for the speed of 150 m/min.)* |
Operating environment | Temperature: 18 to 24°C (no sudden temperature changes) Humidity: 40 to 60% (no condensation) |
*Under SCREEN’s conditions
Specifications of JetInspection (option) for Jet520HD
Barcode reading function | 2D barcode: QR, Data Matrix, PDF417 (black 100%) Placement angle: 0, 90, 180, 270 degrees Background: white (The necessary blank area around each code is based on the quiet zone of the code concerned.) |
---|---|
Log | Acquired through the user interface |
Decode results | Saves all results and outputs them as a CSV file |
Power requirements | PC: Single phase 200 to 240 V AC, 15 A x1 (can be installed in the rack for EQUIOS) |
